Q1 arm Mark 1




Core Only
USD$10.00

Assembly Kit (Included: Core + Servos + Laser Cut Parts + Screws)
USD$54.00

I sell on Tindie Q1 Robot Order Form


Included Items

Core
● Arduino Nano x 1
● Expansion Board for Arduino Nano x 1
Servos
● SG90 Servo (180 Degree) x 5
● Servo Arm for SG90 x 5
● Dupont line (F2F) x 10
● AA Battery Box x 1
Laser Cut Parts
● All Laser Cut Parts for Q1 arm Mark 1
Screws
● M2 x 12mm x 4
● M1.7 x 12mm x 8
● M1.7 x 8mm x 8
● M1.7 x 6mm x 12


Description

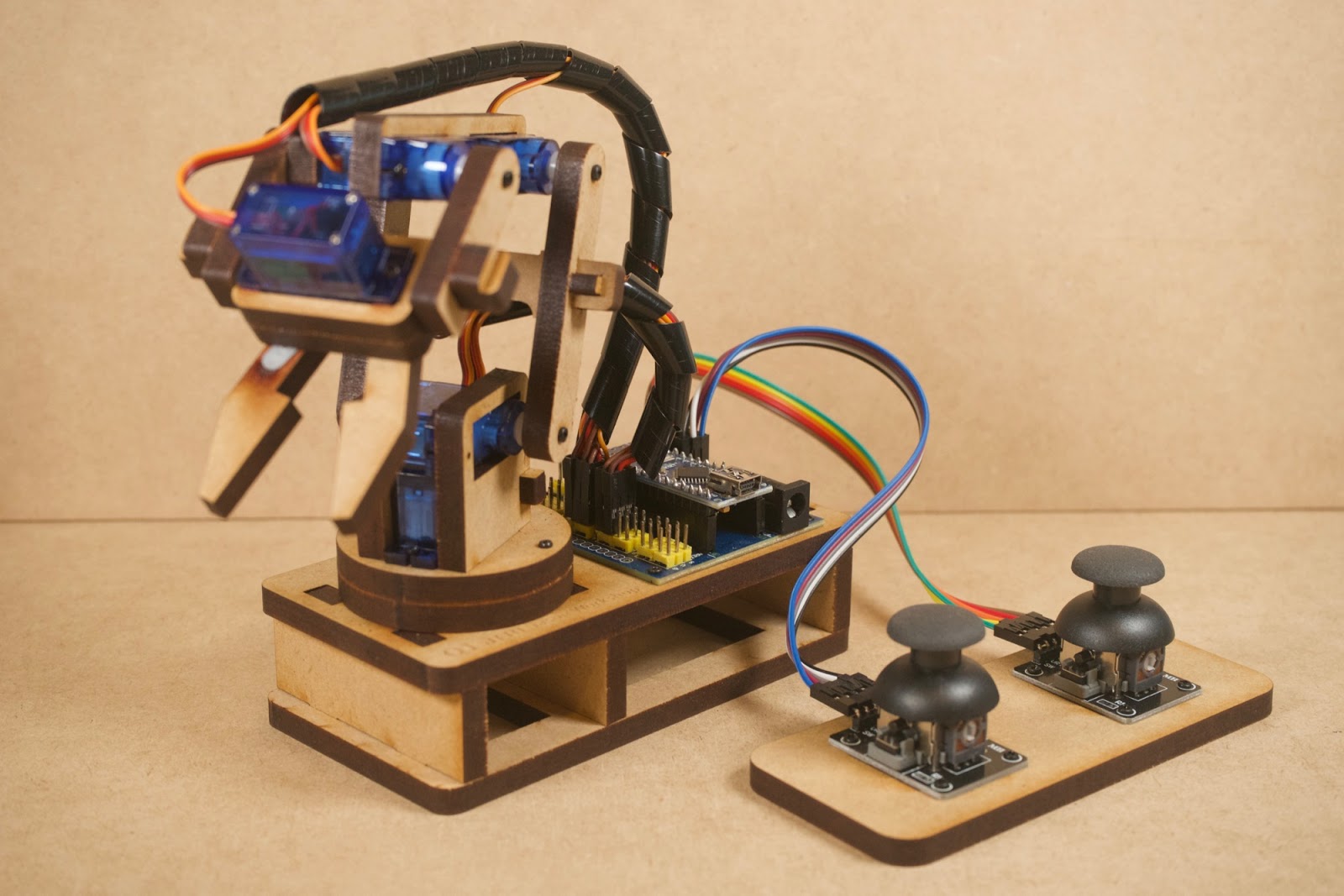

Q1 arm Mark 1 is a simple robot arm control by joystick,
It's easy to make and assembly, suitable for robot beginner.

● Simple design, easy to assembly.
● 5 DOF using SG90 servo.
● Arduino Nano with expansion board.
● Remote control the robot through wired joystick.
● Dimension is L150mm X W70mm X H140mm (Standby Post)


Instructions and downloads
