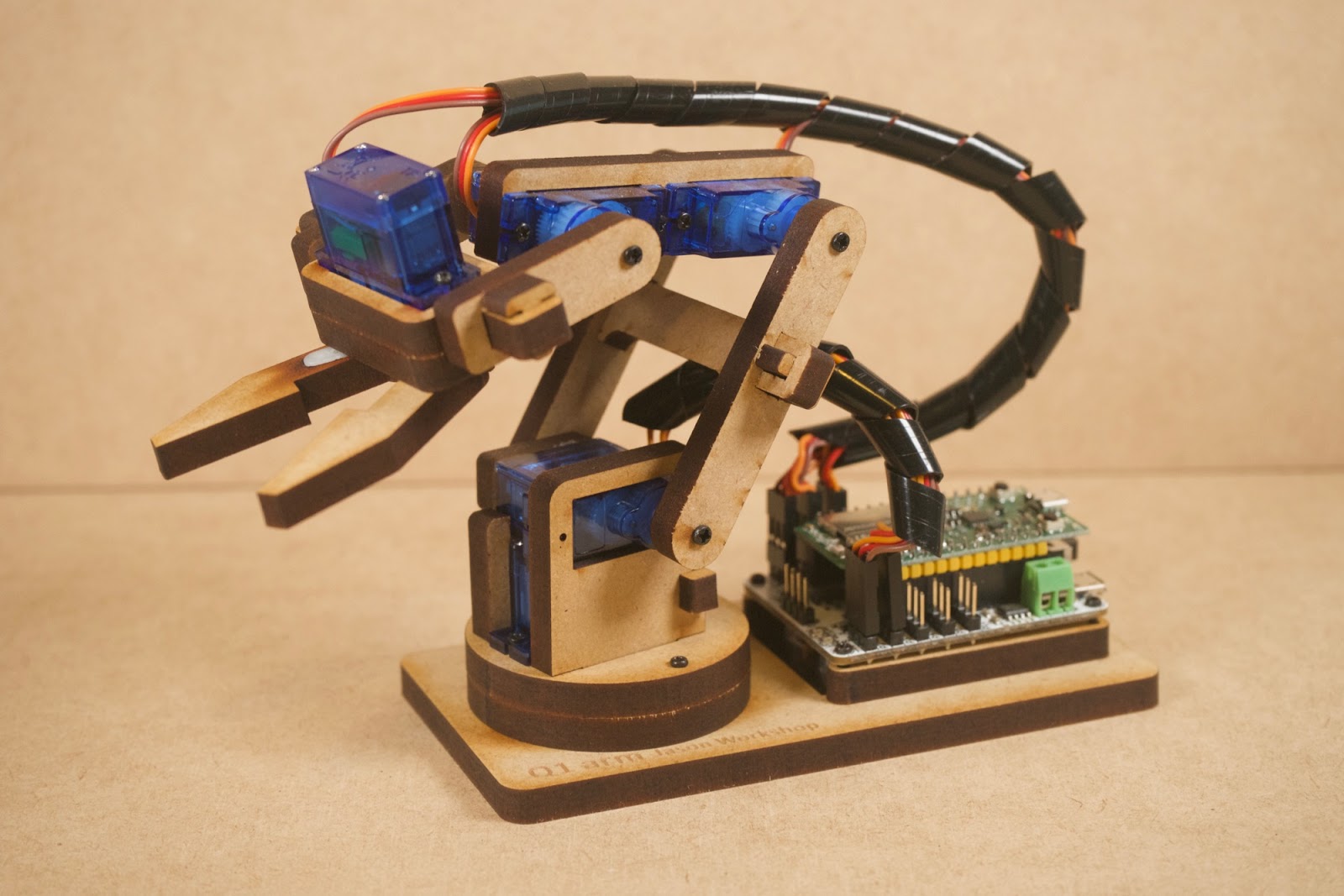

Q1 arm Mark 2

Core Only

Assembly Kit (Included: Core + Servos + Laser Cut Parts + Screws)

I sell on Tindie Q1 Robot Order Form

Included Items

● Robot Shield V2 Servo Control Board for LinkIt 7697 x 1
● LinkIt 7697 Development Board x 1
● SG90 Servo (180 Degree) x 5
● Servo Arm for SG90 x 5
Laser Cut Parts
● All Laser Cut Parts for Q1 arm Mark 2
● M2 x 12mm x 4
● M1.7 x 12mm x 12
● M1.7 x 8mm x 8
● M1.7 x 6mm x 2
● Screw for SG90 Servo gear x 1


Q1 arm Mark 2 is a simple robot arm control by mobile apps,
It's easy to make and assembly, suitable for robot beginner.

● Simple design, easy to assembly.
● 5 DOF using SG90 servo.
● All-in-one controller board - LinkIt 7697 with Robot Shield and built-in battery.
● Remote control the robot through mobile apps.
● Dimension is L150mm X W70mm X H140mm (Standby Post)
