Q1 arm Mark 2

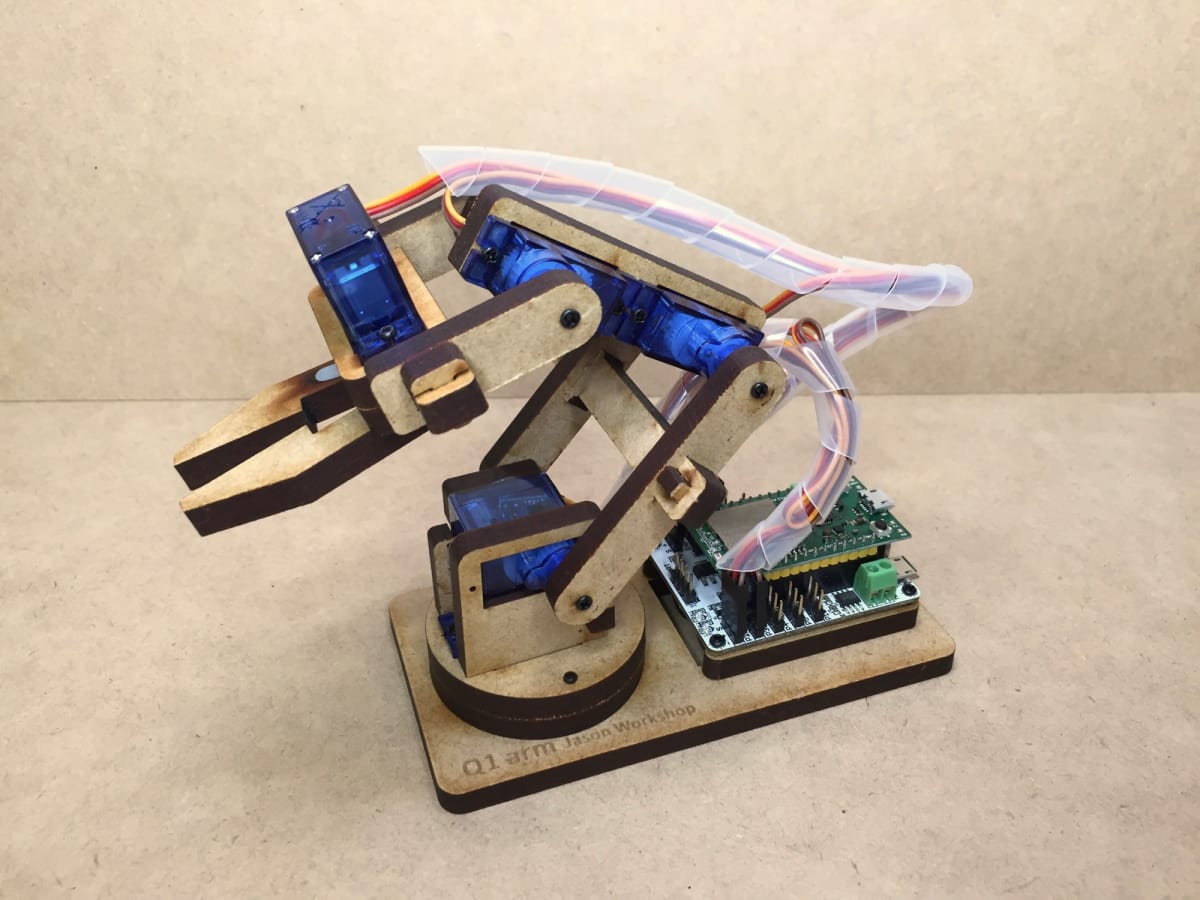

Q1 arm Mark 2 is a simple robot arm control by mobile apps,
It's easy to make and assembly, suitable for robot beginner.

● Simple design, easy to assembly.
● 5 DOF using SG90 servo.
● All-in-one controller board - LinkIt 7697 with Robot Shield and built-in battery.
● Remote control the robot through mobile apps.
● Dimension is L150mm X W70mm X H140mm (Standby Post)



Instruction and downloads
Download instruction and software from:
http://hub.q1robot.com
Parts
Core
● Robot Shield V2 Servo Control Board for LinkIt 7697 x 1
● LinkIt 7697 Development Board x 1

Servos
● SG90 Servo (180 Degree) x 5
● Servo Arm for SG90 x 5

Laser Cut Parts
● All Laser Cut Parts for Q1 arm Mark 2

Screws
● M2 x 12mm x 4
● M1.7 x 12mm x 12
● M1.7 x 8mm x 8
● M1.7 x 6mm x 2
● Screw for SG90 Servo gear x 1
